Workspace Layout#

Workspace layout answers two questions:

  1. Where is the robot base placed in the world?

  2. Given that base pose, what region of space is considered “in-bounds” for the robot?

../_images/aabb.png

Robot base placement#

DexSuite places robots using dexsuite.options.LayoutOptions.

Single-arm#

Single-arm robots use one base pose (PoseOptions). If you do not pass an explicit pose, the default is the origin.

Bimanual#

Bimanual robots have a left and right base pose. DexSuite uses named layout presets to keep these placements consistent across tasks.

Presets live under Dexsuite/dexsuite/config/presets/. For example, the default preset file defines:

  • side_by_side

  • face_to_face

  • right_angle

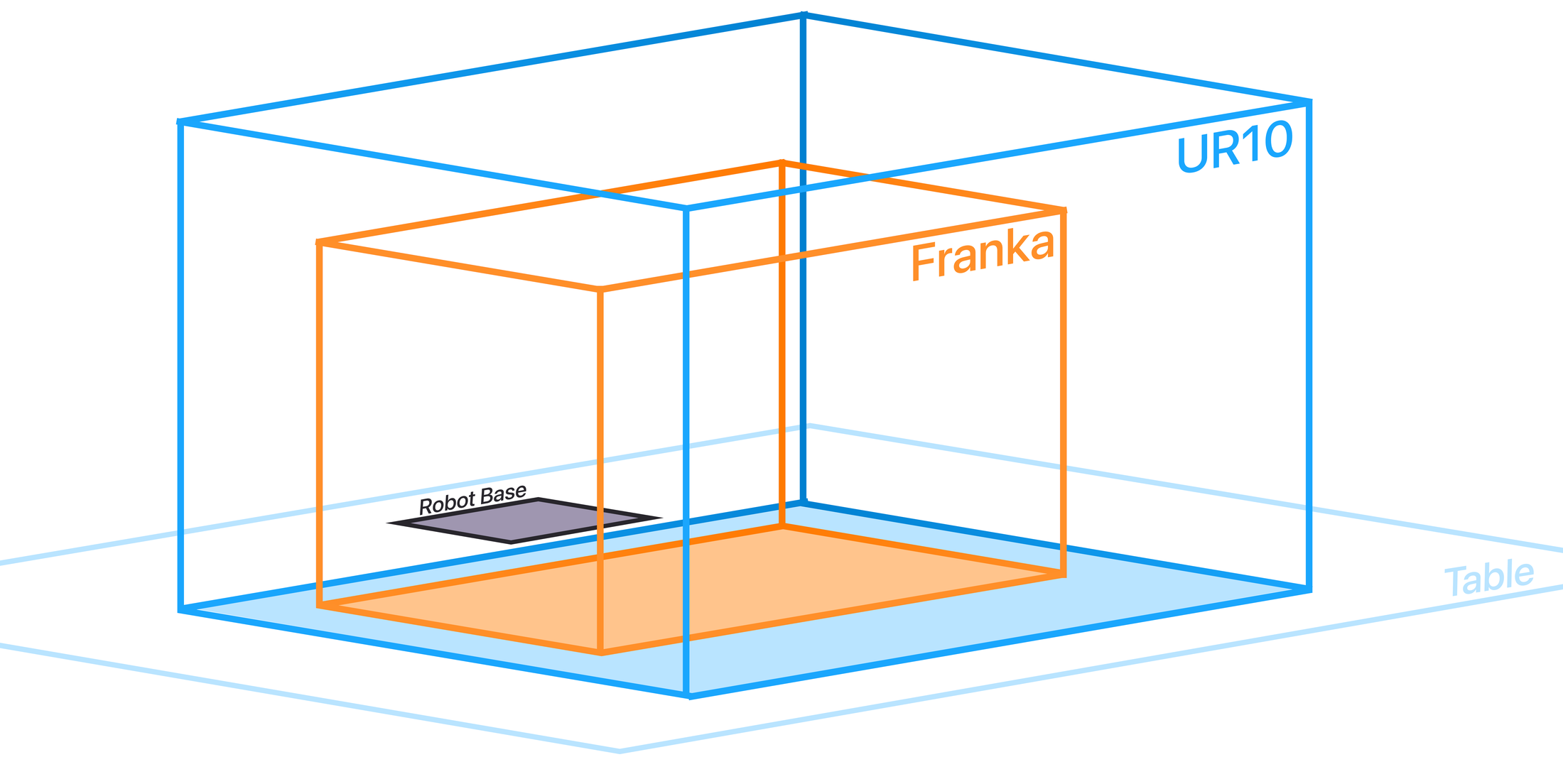

Workspaces and AABBs#

Each manipulator has a default workspace AABB in Dexsuite/dexsuite/config/workspaces.yaml. This AABB is defined in the manipulator base frame.

At runtime, DexSuite transforms this AABB into the world frame using the robot base pose and exposes:

  • env.world_aabb: union workspace used by most tasks.

  • env.get_workspace_aabbs(): dict with keys union, left, right, and overlap.

These AABBs are commonly used for:

  • Sampling initial object poses.

  • Clamping targets into reachable space.

  • Detecting out-of-bounds TCP behavior.

Visualizing the workspace#

You can visualize workspace corners by enabling visualize_aabb on your robot options. This draws small markers at the eight AABB corners during environment construction.

Examples#

Pick a bimanual preset (flat API)#

import dexsuite as ds

env = ds.make(
    "bimanual_reach",
    manipulator=("franka", "franka"),
    gripper="robotiq",
    arm_control="osc_pose",
    gripper_control="joint_position",
    layout="face_to_face",
    render_mode="human",
)

Set explicit base poses (component API)#

import dexsuite as ds
from dexsuite.options import CamerasOptions, LayoutOptions, PoseOptions, RobotOptions, SimOptions

robot = RobotOptions(
    type_of_robot="bimanual",
    layout=LayoutOptions(
        left=PoseOptions(pos=(0.0, 0.35, 0.0), yaw_rad=0.0),
        right=PoseOptions(pos=(0.0, -0.35, 0.0), yaw_rad=0.0),
    ),
)

env = ds.make(
    "bimanual_reach",
    robot=robot,
    sim=SimOptions(n_envs=1, control_hz=20),
    cameras=CamerasOptions(modalities=("rgb",)),
    render_mode="human",
)

Override a workspace AABB (component API)#

import dexsuite as ds
from dexsuite.options import AABBOptions, ArmOptions, RobotOptions

robot = RobotOptions(
    type_of_robot="single",
    single=ArmOptions(
        manipulator="franka",
        workspace=AABBOptions(min=(0.2, -0.3, 0.0), max=(0.6, 0.3, 0.6)),
    ),
    visualize_aabb=True,
)

env = ds.make("reach", robot=robot, render_mode="human")
