API Overview#

This page explains the public DexSuite surface:

  • How to create an environment with dexsuite.make()

  • What reset() and step() return

  • How actions and observations are structured

  • The two configuration styles (flat vs component options)

  • Tools that help you generate configs (HTML builder and interactive builder)

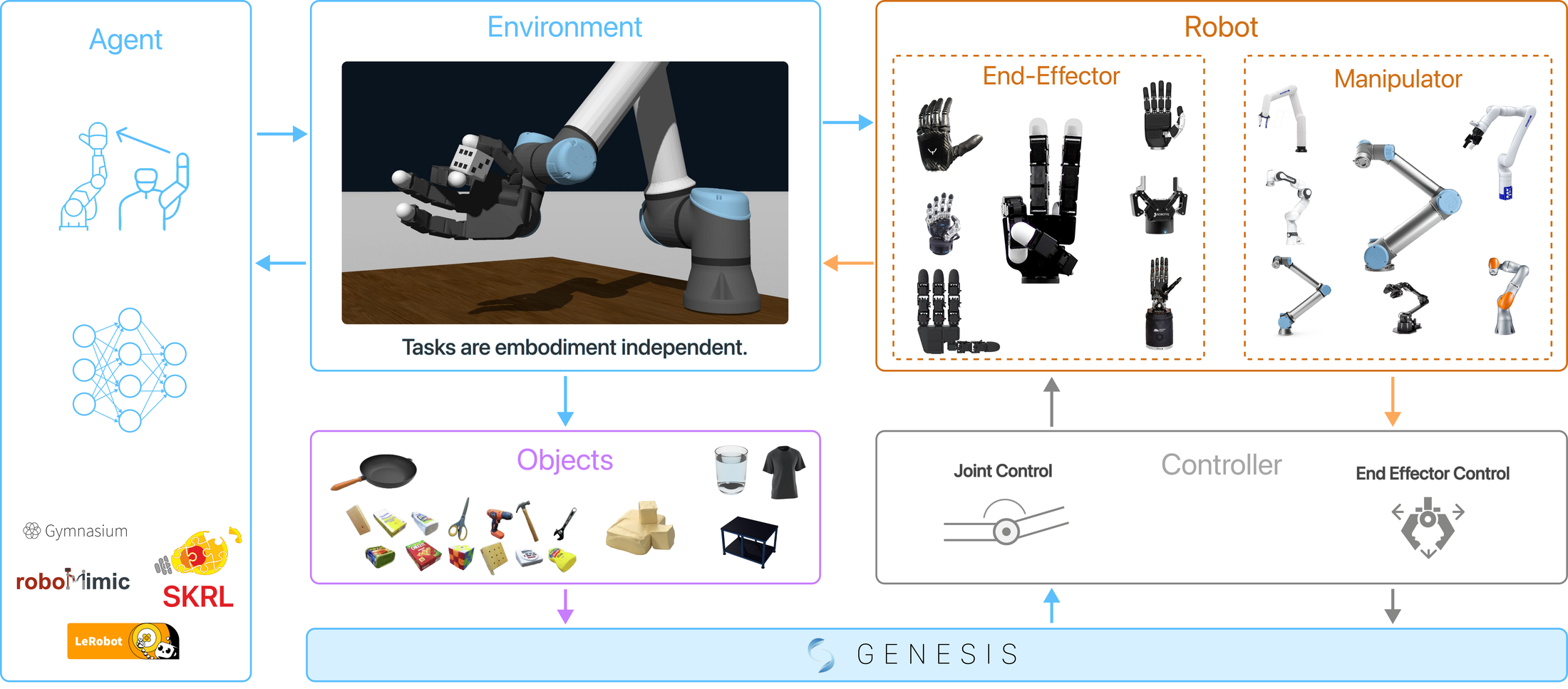

../_images/overview.png

Quickstart (flat API)#

import dexsuite as ds

env = ds.make(
    "lift",
    manipulator="franka",
    gripper="robotiq",
    arm_control="osc_pose",
    gripper_control="joint_position",
    render_mode="human",
)

obs, info = env.reset()
obs, reward, terminated, truncated, info = env.step(env.action_space.sample())
env.close()

Reset and step returns#

DexSuite follows the Gymnasium API shape:

  • reset() -> (obs, info)

  • step(action) -> (obs, reward, terminated, truncated, info)

terminated and truncated are boolean tensors of shape (n_envs,). For a single environment (n_envs=1), treat them as 1-element tensors.

Info dict#

DexSuite adds a few standard fields to info:

  • info["success"]: per-env success mask

  • info["failure"]: per-env failure mask

  • info["needs_reset"]: per-env mask, true when an episode ended (success, failure, or horizon)

Actions#

DexSuite uses a single, flat action vector.

  • Single env: shape (D,)

  • Batched envs: shape (n_envs, D)

D depends on the robot and controller choices. Inspect it with env.action_space.shape.

What you can pass to env.step#

env.step(action) accepts:

  • a torch tensor

  • a NumPy array

  • a Python sequence (list/tuple)

DexSuite converts the input to torch.float32 on the environment device. For batched environments, you can pass a single (D,) action and it will be broadcast to (n_envs, D).

Observations#

Observations are a dictionary with two top-level keys:

  • obs["state"]: robot state plus task state (torch tensors)

  • obs["cameras"]: camera outputs (if cameras are enabled)

Single-arm structure#

In single-arm environments, robot state is under:

  • obs["state"]["manipulator"]

  • obs["state"]["gripper"]

Common fields include:

  • obs["state"]["gripper"]["tcp_pos"]: tool center point position

Bimanual structure#

In bimanual environments, robot state is split by side:

  • obs["state"]["left"]["gripper"]["tcp_pos"]

  • obs["state"]["right"]["gripper"]["tcp_pos"]

Task-specific fields#

Tasks can add extra tensors under obs["state"]["other"] by returning them from _get_extra_obs. DexSuite also stores:

  • obs["state"]["other"]["action"]

  • obs["state"]["other"]["last_action"]

Two ways to configure ds.make#

DexSuite supports two configuration styles. Both end up building the same objects internally.

For a deeper explanation of every option block (sim, robot, layout, cameras), see Configuration System.

1) Flat API (easiest)#

This is the short form. You specify robot/controller choices with strings.

import dexsuite as ds

env = ds.make(
    "reach",
    manipulator="franka",
    gripper="robotiq",
    arm_control="osc_pose",
    gripper_control="joint_position",
    control_hz=20,
    n_envs=1,
    cameras=("front", "wrist"),
    modalities=("rgb",),
    render_mode="human",
)

For bimanual tasks, pass two manipulators and (optionally) a layout preset:

import dexsuite as ds

env = ds.make(
    "bimanual_reach",
    manipulator=("franka", "franka"),
    gripper="robotiq",
    arm_control="osc_pose",
    gripper_control="joint_position",
    layout="side_by_side",
    render_mode="human",
)

2) Component API (most control)#

This is the explicit form. You pass dataclasses that describe the robot, sim, and cameras.

import dexsuite as ds
from dexsuite.options import CamerasOptions, RobotOptions, SimOptions

env = ds.make(
    "lift",
    robot=RobotOptions(type_of_robot="single"),
    sim=SimOptions(control_hz=50, n_envs=8, performance_mode=True),
    cameras=CamerasOptions(modalities=("rgb",)),
    render_mode=None,
)

Use the component API when you need to:

  • Override workspace AABBs

  • Set explicit base poses for robots

  • Use custom camera definitions

  • Keep a fully reproducible configuration in one object

Workspaces and layout#

Workspaces are defined per manipulator in Dexsuite/dexsuite/config/workspaces.yaml. Those AABBs are transformed into the world frame using layout poses.

See Workspace Layout for details and examples.

Tools that help you build configs#

HTML environment builder#

DexSuite includes a small, self-contained HTML tool:

  • Dexsuite/env_builder.html

Open it in a browser and it will generate ds.make(...) code for common combinations (task, robot, controllers, cameras, layout). It also shows the workspace AABB that corresponds to the selected manipulator.

Interactive builder (TUI/CLI)#

DexSuite also ships an interactive builder that runs in your terminal and can save a reusable spec to JSON.

Run it:

python -m dexsuite.interactive_builder

It writes a JSON spec (default: dexsuite_builder_spec.json). You can run again from an existing spec:

python -m dexsuite.interactive_builder run --config dexsuite_builder_spec.json --input keyboard

Teleoperation#

DexSuite supports several input devices (keyboard, spacemouse, VR devices). The interactive builder can launch a small runner that reads a device and steps the environment.

See:

  • Dexsuite/dexsuite/interactive_builder/runner.py for the teleop loop

  • Dexsuite/dexsuite/devices/ for device implementations
